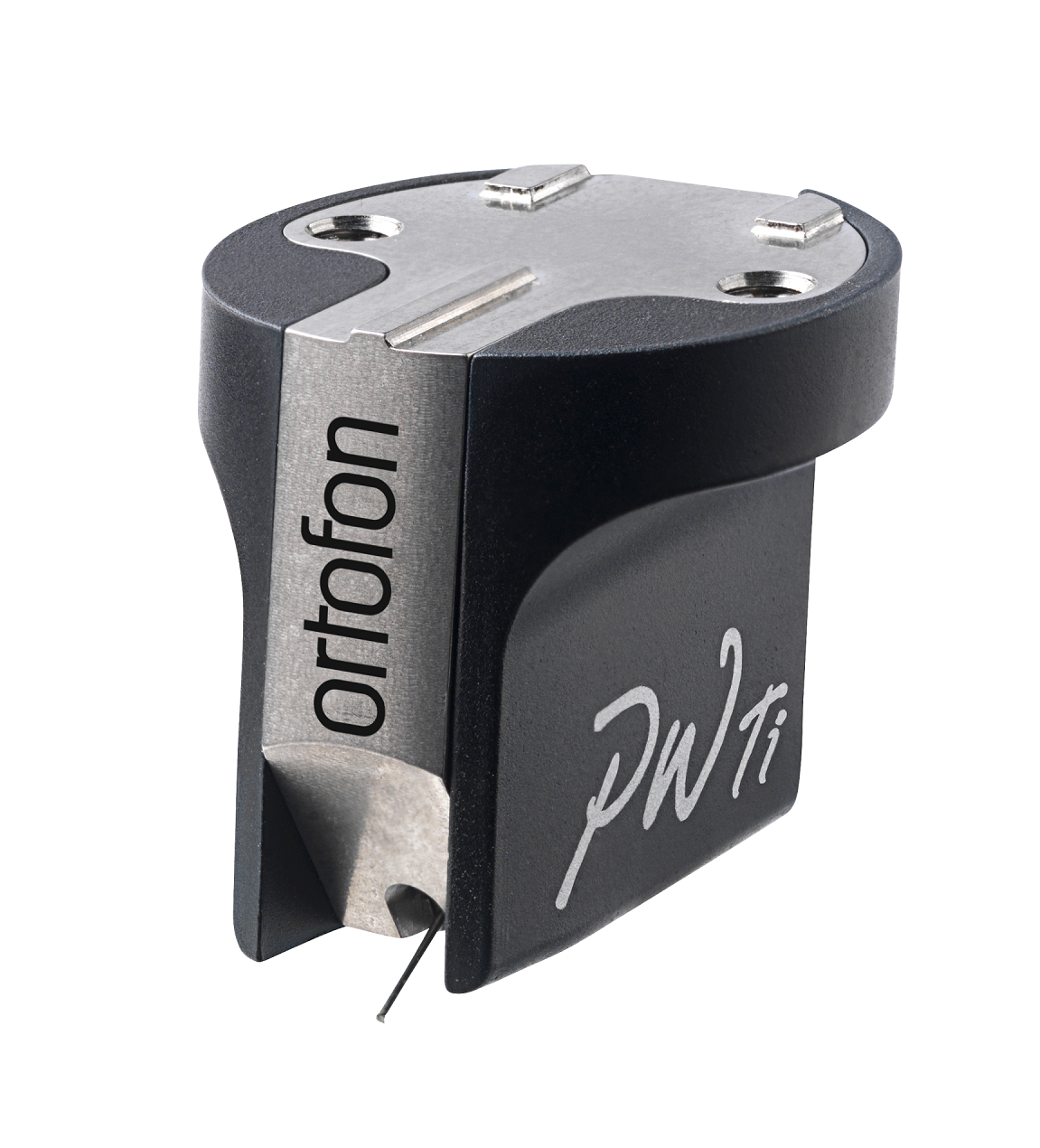

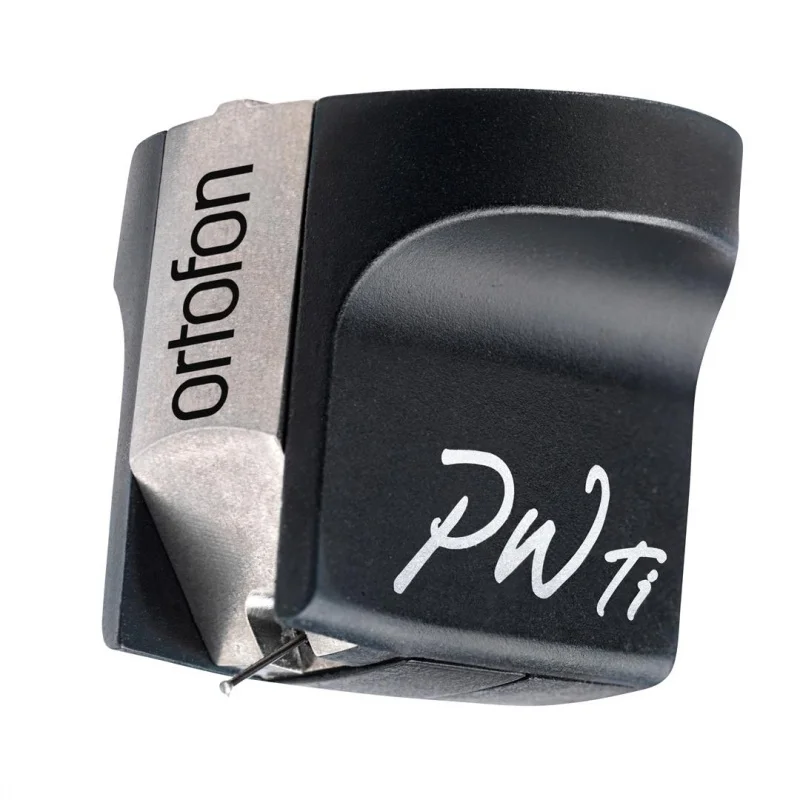

Ortofon MC WIndfeld Ti


Ortofon MC WIndfeld Ti

4,390.00

“What you do get is a cartridge that performs well in all areas with standing out; that is what most listeners want in a transducer. This ability to play whatever, whenever, is the MC Windfeld Ti’s biggest asset.”
The Absolute Sound

“Sonically, the Ti allows a listener to play nearly every album in his catalog without being bothered by any sins of commission.”
—The Absolute Sound,
2018 Product of the Year Award

Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz  -  0.5 dB
Channel separation at 1 kHz  -  25 dB
Channel separation at 15 kHz  -  20 dB
Frequency range at - 3dB  -  10 Hz - 50 kHz
Frequency response  -  20 Hz - 20 kHz +2 dB/- 1 dB
Tracking ability at 315Hz at recommended tracking force  -  90 µm
Compliance, dynamic, lateral  -  13 µm/mN
Stylus type  -  Special polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus tip radius  -  r/R 5/100 µm

Tracking force range  -  2.0-2.5 g (20-25 mN)
Tracking force, recommended  -  2.3 g (23 mN)
Tracking angle  -  23°
Internal impedance, DC resistance  -  7 Ohm
Recommended load impedance  -   > 10 Ohm
Coil wire material  -  Aucurum
Cartridge body material  -  SLM Titanium and Stainless Steel
Cartridge colour  -  Titanium/Black
Cartridge weight  -  11 g
