Kuzma Air Line


Kuzma Air Line

from 11,525.00

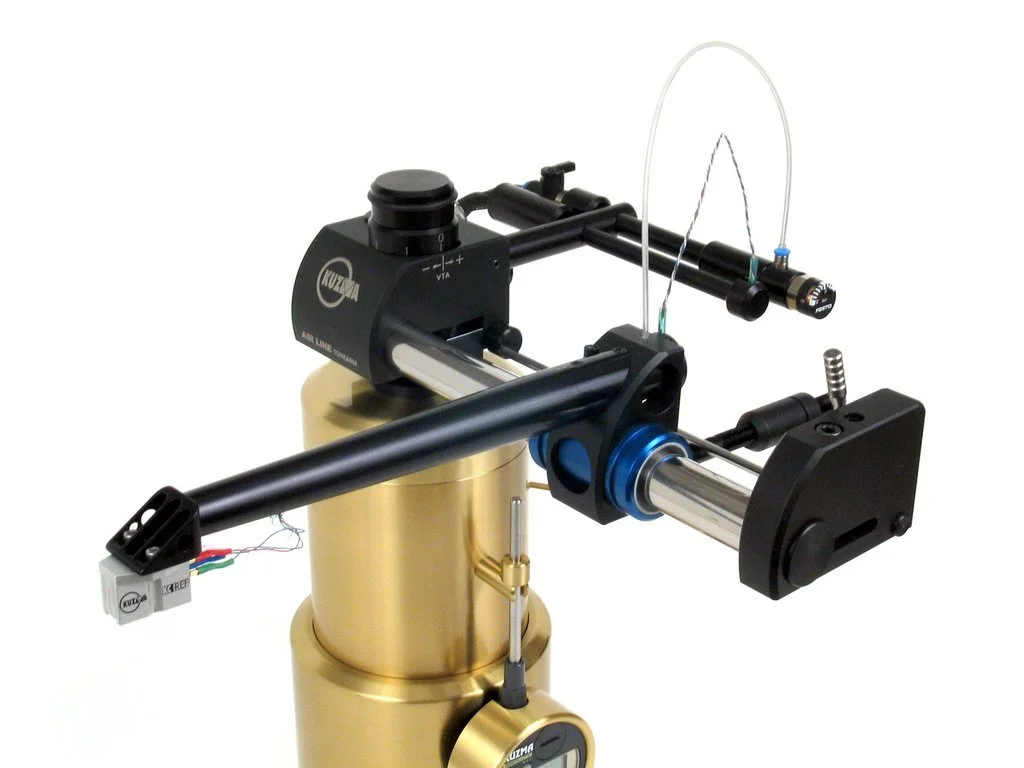

The Kuzma Air Line is a linear tangential arm incorporating  air bearing which ensures practically zero friction in movements, while still maintaining a rigid bearing. The cartridge is thus maintained in a position the same as the cutting head.

The  Air Line tonearm is the result of a combination of experience making top class conventional radial tonearms and new research into air bearing technology.

The Air Line tonearm also has a rigid, minimally resonating aluminium structure and is easy to adjust, with repeatable precise VTA and azimuth adjustments as used in our best tonearms.

The air bearing used is the same type as those used in precision measuring and tool making machines which demand the highest accuracy possible in frictionless movement and positioning. The gap between the shaft and bearing is only 5 microns of an mm. This gives rigid friction less bearing withstanding over 10 kg load. Such bearing gives cartridge zero vibration and zero movements in unwanted directions allowing cartridge to collect only musical information from the grooves.

Pressurised air is supplied by the quietest compressors available with air-drying unit and it is best positioned outside listening room connected by only a thin plastic tube.

http://www.kuzma.si/media/uploads/files/KUZMA%20Air%20Line%20tonearm%202011.pdf

Introduced: 2003

Technical Data

Effective length 184 mm

Arm mount distance 212 mm

Distance from spindle to horizontal bearing -

Bearing type Precise high pressure air bearing

Effective mass Vert.

Total mass 2270 gr

Offset angle 0*

VTA adjustment Precise VTA tower

Azimuth adjustment Precise worm drive

Tube Conical

Bias -

Max. standard cartridge weight 25 gr

Optional light and heavy counterweight Yes

Damping Yes

Detachable headshell No

Arm mount Kuzma

Standard wiring Silver, RCA Bullets ( 46pF )

Accessories Protractors,Allen keys, cartridge mounting screws

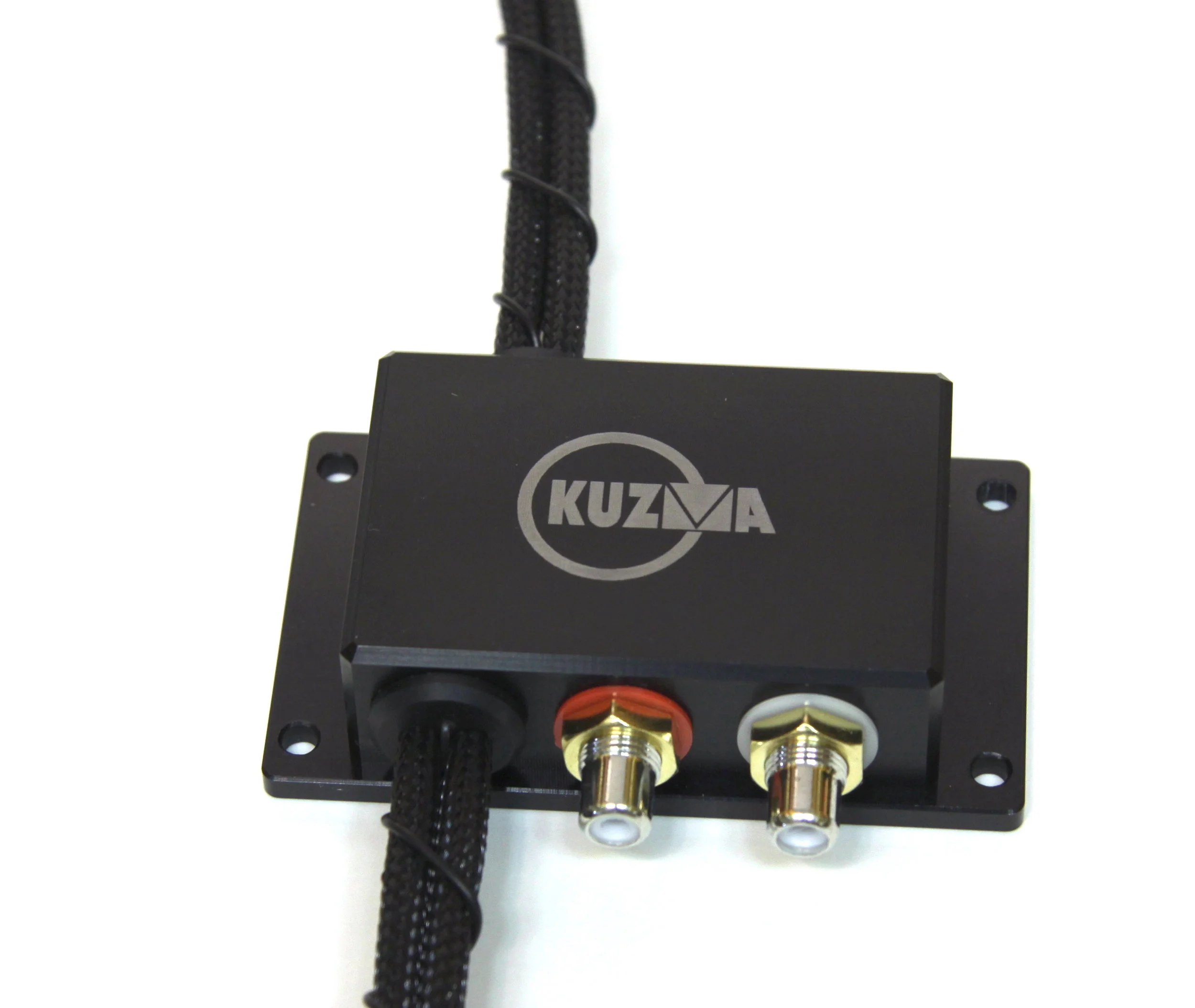

Options XLR, 5pin, RCA box
